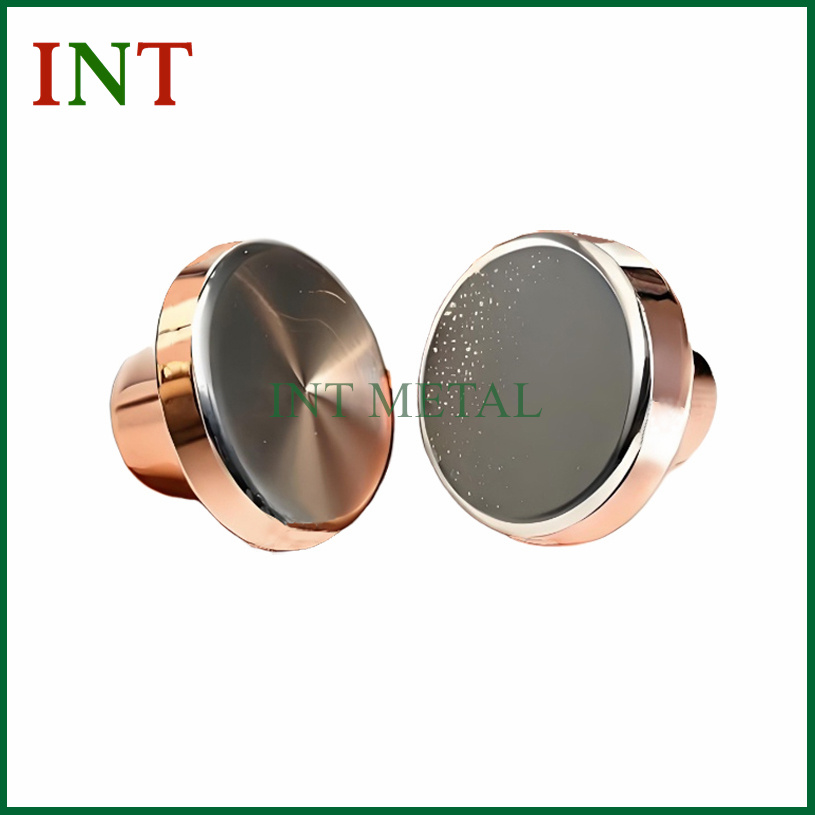

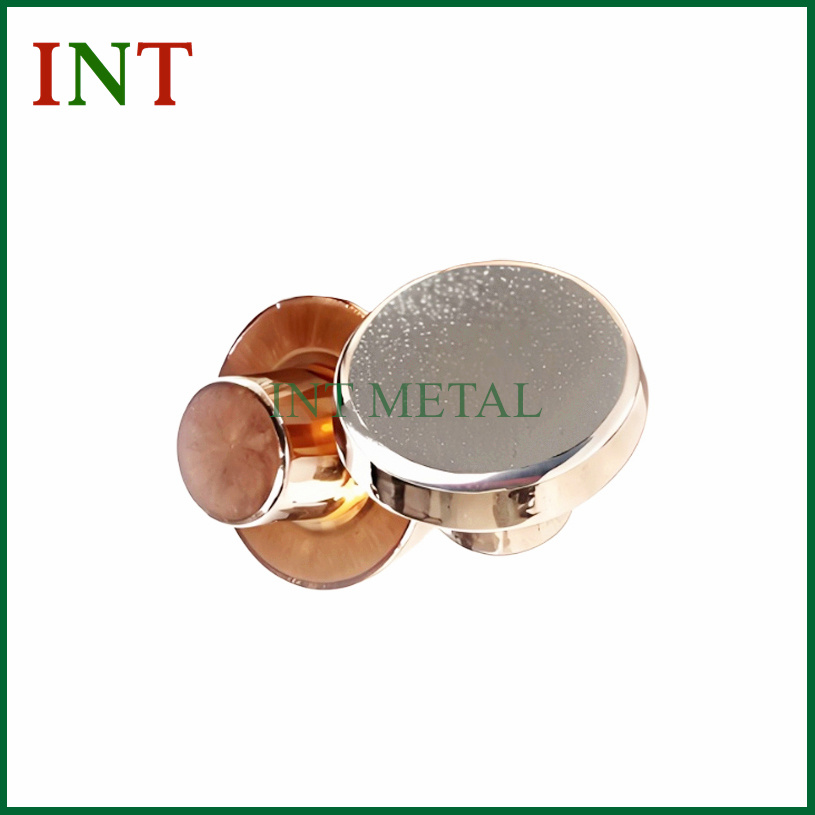

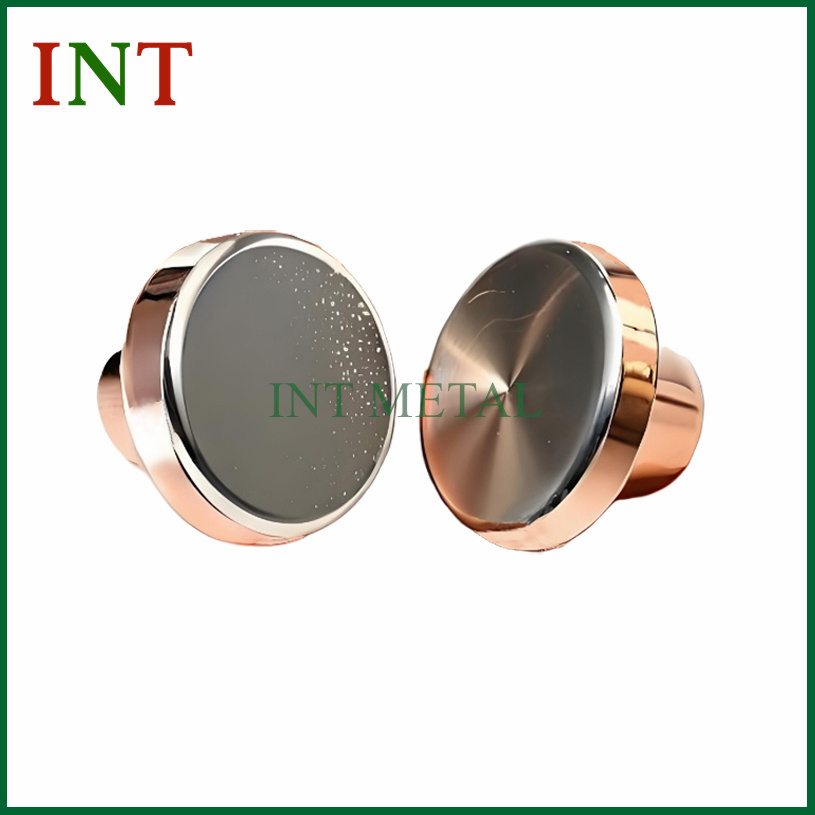

AgNi Bimetal Contact Rivets

AgNi bimetal contact rivets has a high level of electrical and thermal conductivity, good plasticity and arc corrosion resistance, as well as a very low contact resistance.

Send Inquiry

Product Description

AgNi Bimetal Contact Rivets


Contact rivet factory, more than 10 years manufacture experience, attained ISO9001, work on OEM and ODM projects.



1.   Introduction of AgNi Bimetal Contact Rivets


AgNi bimetal contact rivets has a high level of electrical and thermal conductivity, good plasticity and arc corrosion resistance, as well as a very low contact resistance.



2.   Application of AgNi Bimetal Contact Rivets


Mainly usedin all kinds of switch, controller, voltage regulator, circuit breaker, automotive electrical, magnetic starter, and so on.

Normally suit for the electric current which below 100A, AgNi10 is commonly used to the AC contactor below 20A, AgNi (15 ~ 40) are able to bear a larger electric load.

AgNi Bimetal Contact Rivets



3.   Main Materials for AgNi Bimetal Contact Rivets


AgNi10/Cu, AgNi12/Cu, AgNi15/Cu, AgNi20/Cu, AgNi30/Cu

Category

Density g/cm3≥

Electrical conductivity .cm≤

Hardness soft HV≥

Tensile strength soft MPa≥

AgNi10

10~10.32

2.10

75

310

AgNi12

10~10.32

2.1

75


AgNi15

9.9~10.23

2.2

76

320

AgNi20

9.8~10.15

2.3

77

320

AgNi30

9.7~9.97

2.7

80


For a less than 20 amp circuit load, rivets are often made fromAgNi10.


4.Specification of AgNi Bimetal Contact Rivets


Dimensions can be customized

AgNi Bimetal Contact Rivets specifications


5.   Product types for AgNi Bimetal Contact Rivets


a.   Single metal AgNi

b.   Bimetal AgNi + Cu

c.   Tri-metal AgNi –copper –AgNi

AgNi Bimetal Contact Rivets type


6.   Process of AgNi Bimetal Contact Rivets


AgNi Bimetal Contact Rivets process


7. Manufacture plant of AgNi Bimetal Contact Rivets


AgNi Bimetal Contact Rivets factory

8. Quality certificate for AgNi Bimetal Contact Rivets



AgNi Bimetal Contact Rivets detailsAgNi Bimetal Contact Rivets certificate




9. Packing and shipping for AgNi Bimetal Contact Rivets


  Packing:

 First put 500-5000 pcs into small plastic bags or vacuum plastic bags, then in separated small carton box, at last Into hard cardboard box.

AgNi Bimetal Contact Rivets packing


Shipping:

We will choose the best way according to customer’s requests.
1. By Air, to the indicated airport.

2. By Express (FedEx, UPS, DHL, TNT,EMS), to the indicated address.
2.By Sea, to the indicated sea port.


AgNi Bimetal Contact Rivets delivery


10.FAQ


1. Do you have ISO certificate?

Yes, we obtained ISO9001

2. How long is your delivery time?

15-25 days depend on the raw material condition

3. Do you make parts according to our design?

Yes, we always do as per customers drawings or Technical documents

4. Can you help us to choose suitable material?

Yes, we can recommend the most suitable material according to your application.

5. Do you provide sample? Free or charge?

Yes, if the sample in stock available, free of charge, if not, need to charge some mfg cost.
