Silver inlay brass strip is a new technical material, based on different industry needs, formed by advanced indoor temperature composite technology or hot composite technique. It is rolled with different alloy material and base material strip. After well composited, its electrical character and wearability are much better than single precious metal (such as gold and silver).

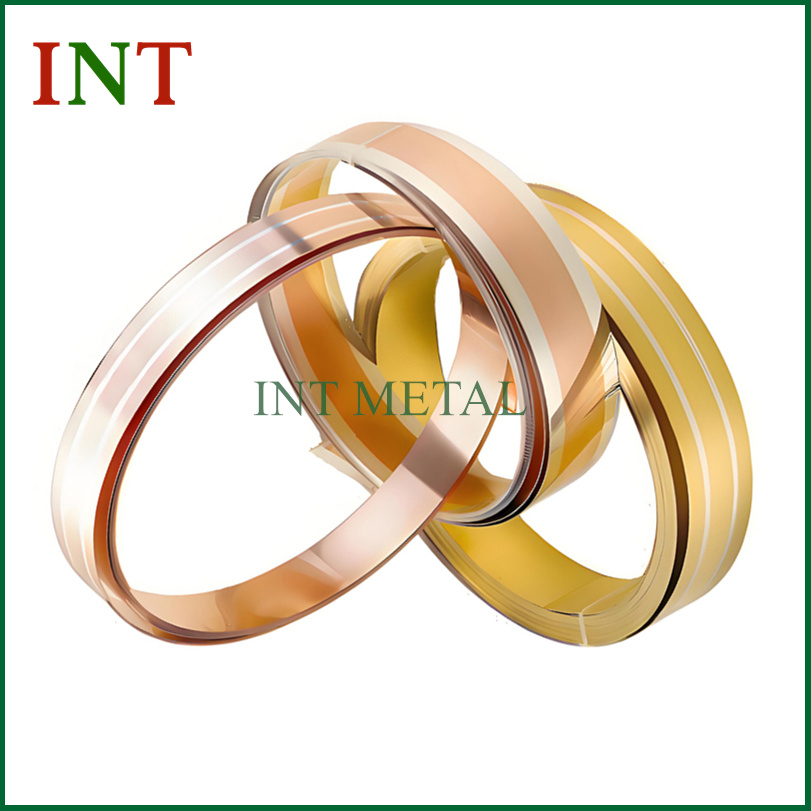

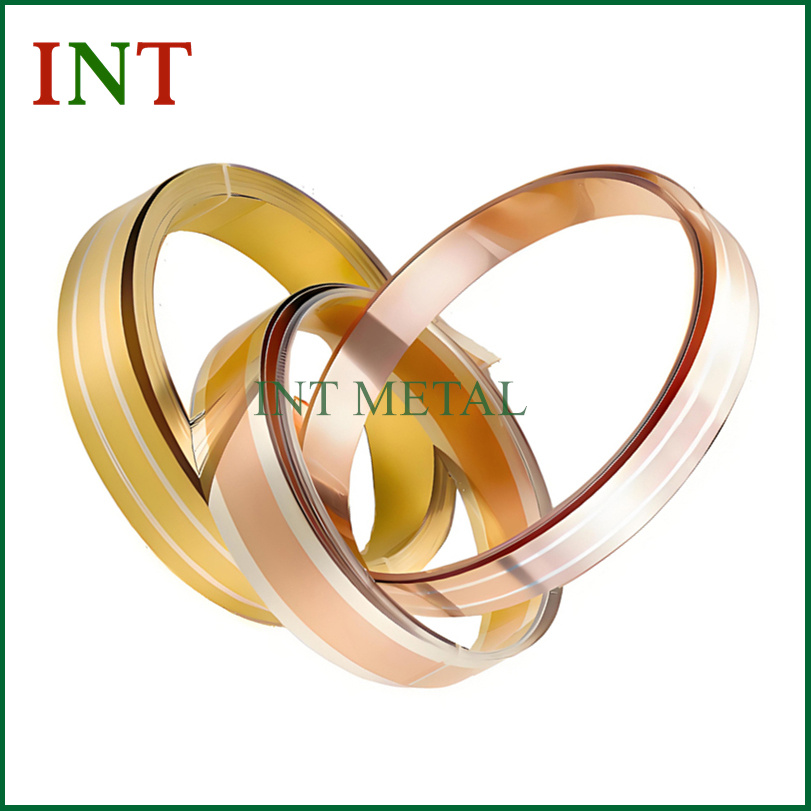

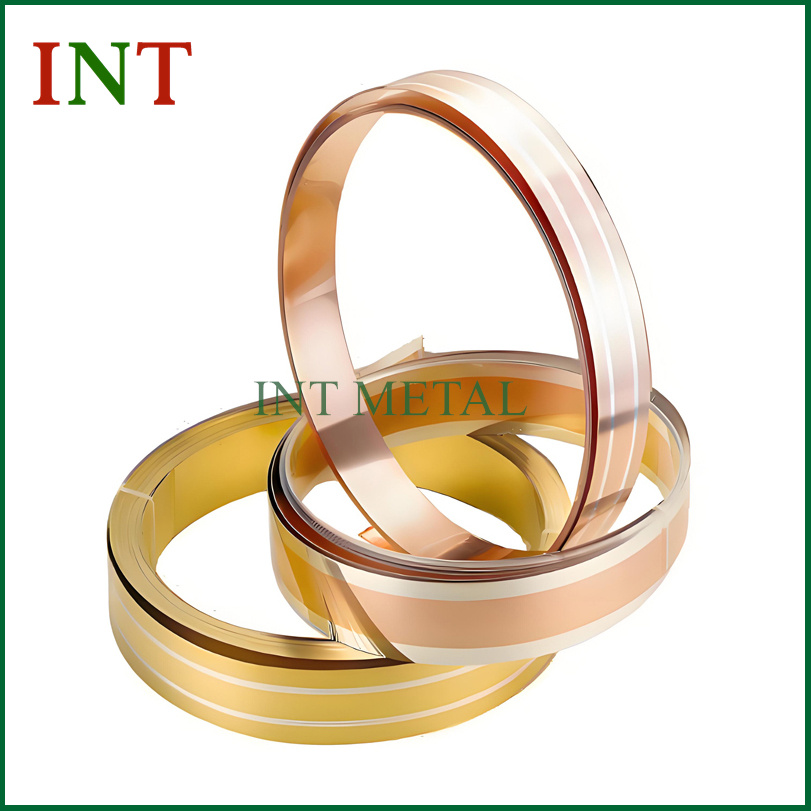

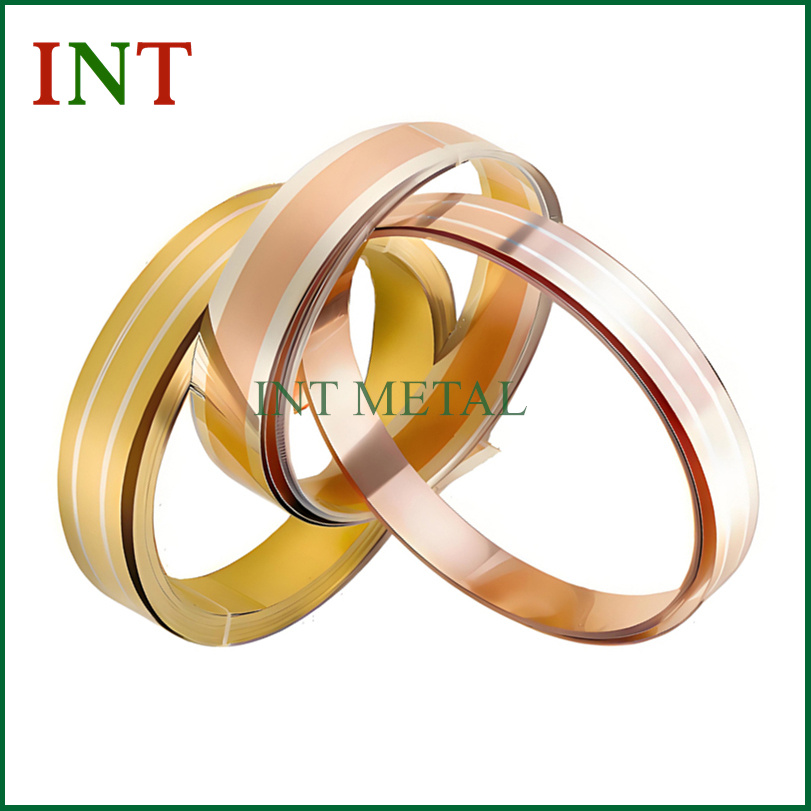

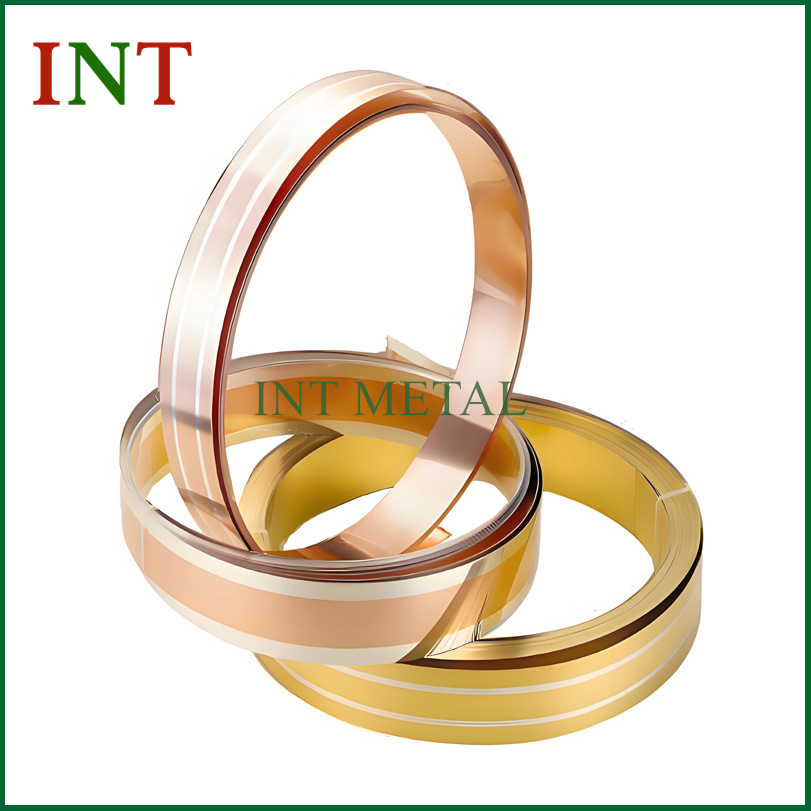

Silver Inlay Brass Strip
Clad metal manufacturing, more than 10 years manufacture experience, attained ISO9001, work on OEM and ODM projects..
1.Introduction of the silver inlay brass strips
Silver inlay brass strip is a new technical material, based on different industry needs, formed by advanced indoor temperature composite technology or hot composite technique. It is rolled with different alloy material and base material strip. After well composited, its electrical character and wearability are much better than single precious metal (such as gold and silver).
2. Application of silver inlay brass strips
Mainly used for all sorts of electrical component production, such as, micro motors, electrical brush, commutator, jiggle plug/socket, relay, connector, tuner, etc.
It is also suitable for continuous automatically manufacture.
3. Main Materials for silver inlay brass strips
Main face Materials: Ag, AgNi, AgCdO, AgSnO2, AgSnO2ln2O3, AgZnO,
Main base materials: Cu, CuNi , Brass
4.Specification of silver inlay brass strips
Dimensions can be customized
Total Width
Silver Width
Total Thickness
Silver Thickness
Total Width Tolerance
Total Thickness Tolerance
1.5-60
1.5-60
0.1-0.5
0.05-0.3
±0.5
±0.03
1.5-60
1.5-60
0.6-1.5
0.05-1.0
±0.1
±0.05
1.5-60
1.5-60
1.6-3.0
0.05-1.5
±0.2
±0.08
5. Product types for silver inlay copper brass strips
One layer inlay, two layers inlay, Multi-layers inlay

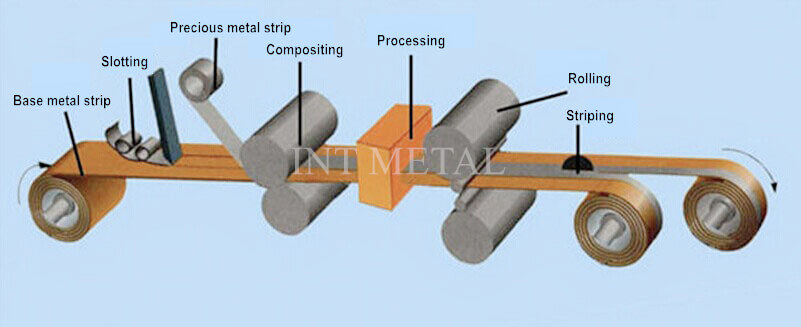

6. Process of silver inlay brass strips

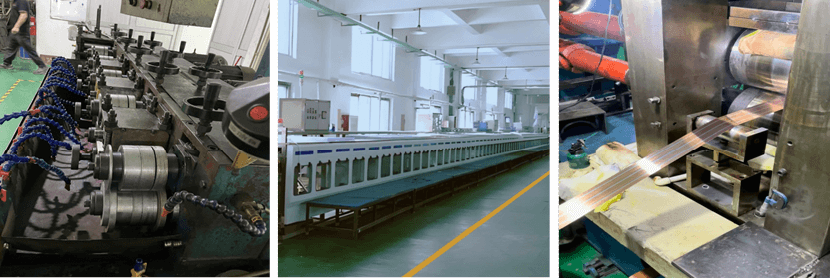

7. Manufacture plant of silver inlay brass strips
Germany Hi-precision Roller Machine; Hi-precision Vertical Cutting Machine; Slotting Machine; High-precision punch machine.
8. Quality certificate for silver inlay brass strips
9. Packing and shipping for silver inlay brass strips
Packing:
First put into Vacuum sealed plastic film, then Fill with sponge into the hard cardboard carton box, each box won’t excess the weight 30kg..
Shipping:
We
will choose the best way according to customer’s requests.
1.
By Air, to the indicated airport.
2. By Express (FedEx, UPS, DHL, TNT,EMS), to the indicated address.
2. By Sea, to the indicated sea port.
10.FAQ
1. Do you have ISO certificate?
Yes, we obtained ISO9001
2. How long is your delivery time for silver inlay strip?
20-25 days depend on the raw material condition
3. Do you make parts according to our design?
Yes, we always do as per customers drawings or Technical documents
4. Can you help us to choose suitable material?
Yes, we can recommend the most suitable material according to your application.
5. Do you provide sample? Free or charge?
Yes, if the sample in stock available, free of charge, if not, need to charge some mfg cost.
