Silver inlay bronze strip is a new technical material, based on different industry needs, formed by advanced indoor temperature composite technology or hot composite technique. It is rolled with different alloy material and base material strip.After well composited, its electrical character and wearability are much better than single precious metal. It is saving precious metal, keeping low cost and consistency of social development.

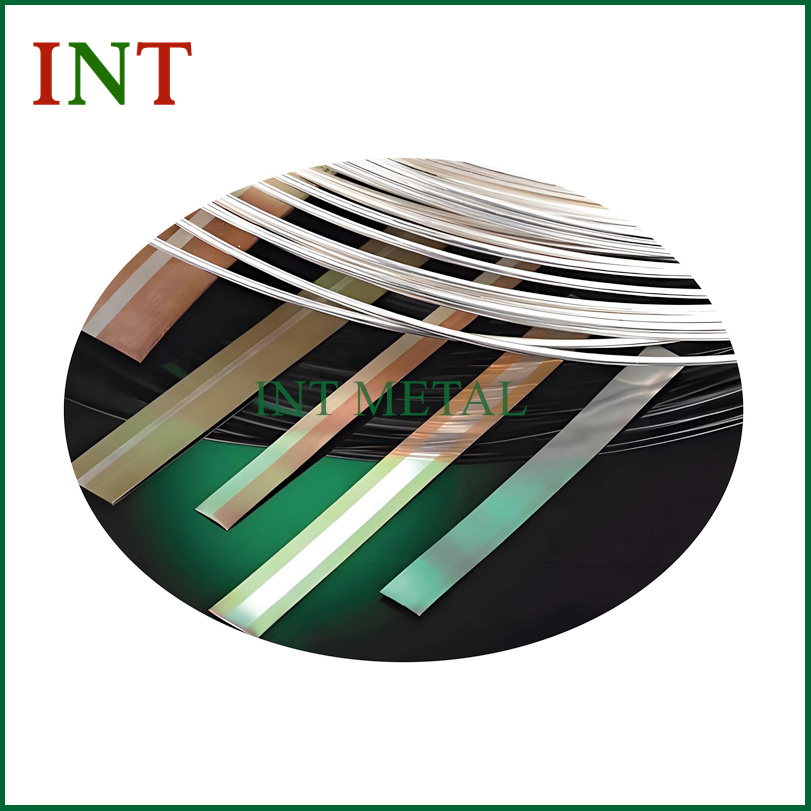

Silver Inlay Bronze Strips
Clad metal manufacturing, more than 10 years manufacture experience, attained ISO9001, work on OEM and ODM projects..
1.Introduction of the silver inlay bronze strips
Silver inlay bronze strip is a new technical material, based on different industry needs, formed by advanced indoor temperature composite technology or hot composite technique.
It is rolled with different alloy material and base material strip.After well composited, its electrical character and wearability are much better than single precious metal. It is saving precious metal, keeping low cost and consistency of social development.
2. Application of silver inlay bronze strips
Mainly used for all sorts of electrical component production, such as, micro motors, electrical brush, commutator, jiggle plug/socket, relay, connector, tuner, etc.
It is also suitable for continuous automatically manufacture.
3. Main Materials for silver inlay brass strips
Main face Materials: Ag, AgNi, AgCdO, AgSnO2, AgSnO2ln2O3, AgZnO,
Main base materials: Cu, CuNi , Brass
4.Specification of silver inlay bronze strips
Dimensions can be customized
|
Total Width |
Silver Width |
Total Thickness |
Silver Thickness |
Total Width Tolerance |
Total Thickness Tolerance |
|
1.5-60 |
1.5-60 |
0.1-0.5 |
0.05-0.3 |
±0.5 |
±0.03 |
|
1.5-60 |
1.5-60 |
0.6-1.5 |
0.05-1.0 |
±0.1 |
±0.05 |
|
1.5-60 |
1.5-60 |
1.6-3.0 |
0.05-1.5 |
±0.2 |
±0.08 |

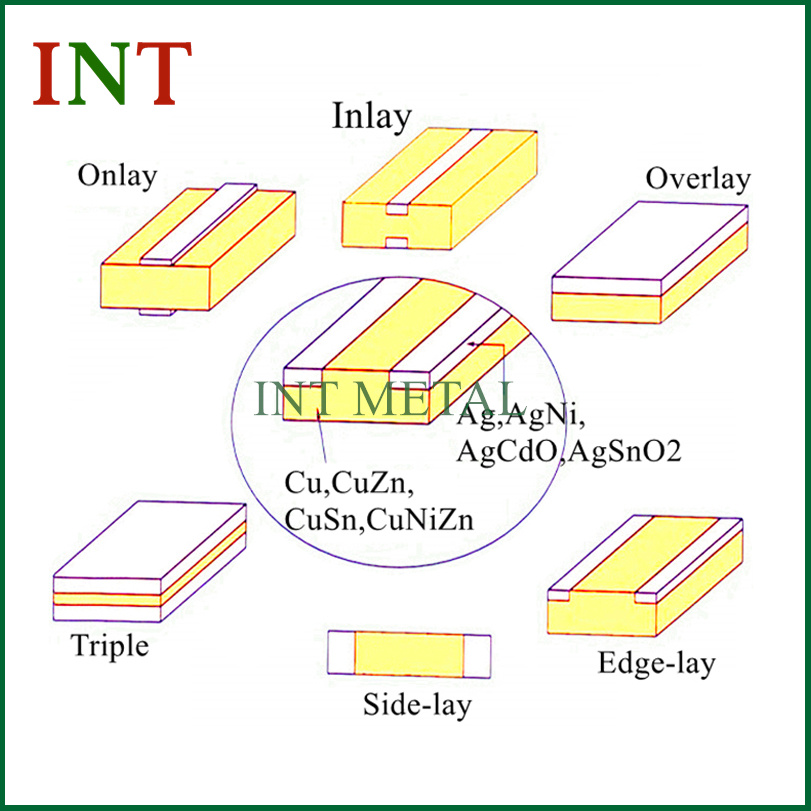

5. Product types for silver inlay bronze strips
One layer inlay, two layers inlay, Multi-layers inlay
6. Process of silver inlay bronze strips
7. Manufacture plant of silver inlay bronze strips
Germany Hi-precision Roller Machine; Hi-precision Vertical Cutting Machine; Slotting Machine; Ionic Absorption Test System AAS; Light Processor & Metallographic Microscope; Digital Light Processor; Strength Tester; Hardness Tester.
8. Mill certificate for silver inlay bronze strips
9. Packing and shipping for silver inlay bronze strips
Packing:
First put into Vacuum sealed plastic film, then Fill with sponge into the hard cardboard carton box, each box won’t excess the weight 30kg..
Shipping:
We
will choose the best way according to customer’s requests.
1.
By Air, to the indicated airport.
2. By Express (FedEx, UPS, DHL, TNT,EMS), to the indicated address.
2. By Sea, to the indicated sea port.
10.FAQ
1. Do you have ISO certificate?
Yes, we obtained ISO9001
2. How long is your delivery time for silver inlay strip?
20-25 days depend on the raw material condition
3. Do you make parts according to our design?
Yes, we always do as per customers drawings or Technical documents
4. Can you help us to choose suitable material?
Yes, we can recommend the most suitable material according to your application.
5. Do you provide sample? Free or charge?
Yes, if the sample in stock available, free of charge, if not, need to charge some mfg cost.
